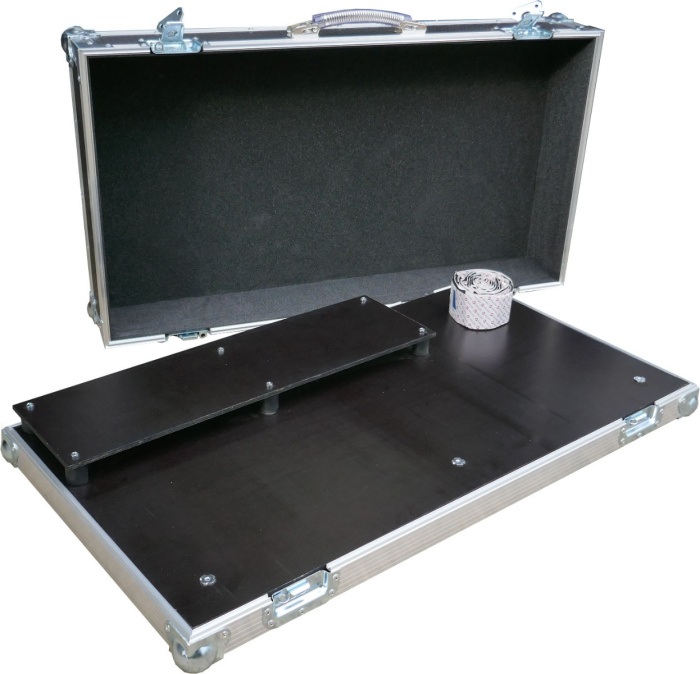

Tiered 2 Level Guitar Pedal Board Cases

4 sizes
Available in left or right footed versions

Special offer price

Availability: In stock

£127.05
Configure your case:
More Info

* Required Fields

£127.05

Details

4 Sizes available
Short single - holds 1 Wah/volume plus other pedals
Short Twin - holds 2 Wah/volume plus other pedals
Long Single - holds 1 Wah/volume plus other pedals
Long Twin - holds 2 Wah/volume plus other pedals

2x Strong butterfly catches on the ends of the case hold the lid in place
4x Large rubber feet bolted to the base
The lid removes completely via butterfly catches
Techno handle on the front.
Ball Corners
Carpet covered base with space beneath for cables and cut-out under second level
Buyer would need to drill holes to pass cables for their pedal arrangement.
Carpet covered second level is 40mm above the first with 70mm of clearance for PSU's etc.
Lower tier height clearance - 120mm
Upper tier height clearance - 78mm
2 Metres of self adhesive velcro is supplied to attach your pedals to carpet

4 sizes to choose from
Short Single - holds 1 full size pedal (volume / wah pedal) and many other standard size pedals
Internal dimensions - Lower level 586mm x 377mm - Second level 435mm x 200mm
External Dimensions 430mm(W) x 200mm(H) x 630mm(L)
Approx weight 9Kg

Short Twin - holds 2 full size pedals (volume / wah pedal) and many other standard size pedals
Internal dimensions - Lower level 734mm x 377mm - Second level 435mm x 200mm
External Dimensions 430mm(W) x 200mm(H) x 780mm(L)
Approx weight 10Kg

Long Single - holds 1 full size pedal (volume / wah pedal) and many other standard size pedals
Internal dimensions - Lower level 783mm x 377mm - Second level 630mm x 200mm
External Dimensions 430mm(W) x 200mm(H) x 820mm(L)
Approx weight 10.5Kg

Long Twin - holds 2 full size pedals (volume / wah pedal) and many other standard size pedals
Internal dimensions - Lower level 932mm x 377mm - Second level 630mm x 200mmExternal Dimensions 430mm(W) x 200mm(H) x 980mm(L)
Approx weight 11Kg


Left footed versions available (although these would have to be made to order)

Various colours/finishes (cost option)
