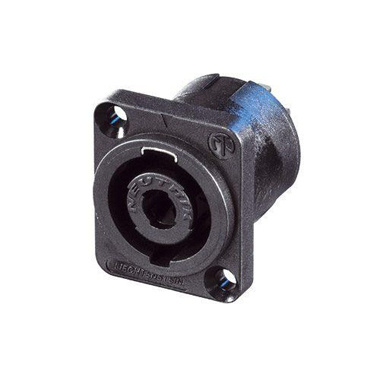

SpeakON 4 pole Chassis Connector NL4MPUC


More Views

SpeakON 4 pole Chassis Connector NL4MPUC
40 amp
1/4" flat tabs
D Size flange

For shipping costs, add item to cart

Select country of destination and select the "Calculate Shipping" button

Product Description


Finish - Black
4 Pole
Chassis - D Size flange
Connections - 1/4" tabs
40 Amp
Fixing - Countersink Holes

​The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections.
They feature a unique metal locking system, making contact only once fully locked.
The Speakon receptacles are robust, versatile and easy to terminate with either flat tab (Faston®) or screw terminals, pcb mount or soldering.
They are available in 2, 4 and 8 pole configuration utilizing D size or G size panel cutout.
The chassis connectors are airtight for audio applications (leakage 30 cm3/s at 10 kPa differential pressure) unless otherwise stated.
